Explainer: The Basics of Electrical Outlet Replacement
The first time I replaced an electrical outlet, I was nervous. But with some patience and the right tools, it turned out to be easier than expected. Here's how you can do it too.
Why Replace an Electrical Outlet?
When I first noticed a crack in the outlet near my kitchen counter, I knew it was time for a change. Damaged or outdated outlets aren't just an eyesore; they can pose real safety hazards. Over time, outlets can become loose or even stop functioning altogether, and in worse cases, they could cause electrical fires. In this explainer, I'll guide you through the process of safely replacing an electrical outlet, offering insights from my own experience to help you avoid common pitfalls. Whether you're dealing with a burnt outlet or just upgrading to a more modern one, understanding the basics can empower you to take action confidently.
My First Outlet Replacement: What I Learned
The first time I tackled an outlet replacement, I underestimated the importance of preparation. Armed with a screwdriver and a voltage tester, I began. After turning off the power at the breaker, I unscrewed the old outlet plate. The real challenge came when I pulled the outlet out and faced a tangle of wires. It took me an hour to figure out which wire went where, but once I did, the process was straightforward. I learned that labeling the wires before disconnection could have saved me at least 30 minutes.
On my second attempt, I was more organized. I found that having a small flashlight handy made it easier to see inside the electrical box, which is often cramped and poorly lit. I also realized that having a pair of needle-nose pliers can help in handling the wires more efficiently, especially when old wires have become stiff over time. If you’re doing this for the first time, expect to spend about an hour, but it gets much faster with practice.
What Tools and Materials You'll Need
For my second outlet replacement, I ensured I had all the right tools ready. Here’s what you’ll need:
- Voltage Tester: To make sure the power is off.
- Screwdriver: A flathead and possibly a Phillips, depending on your outlet.
- Wire Strippers: To prepare the wires for connection.
- New Outlet: A standard 15-amp outlet costs about $3 to $5.
- Electrical Tape: For added safety.
- Needle-nose Pliers: Useful for gripping and bending wires.
- Flashlight: Helps to see inside the electrical box clearly.

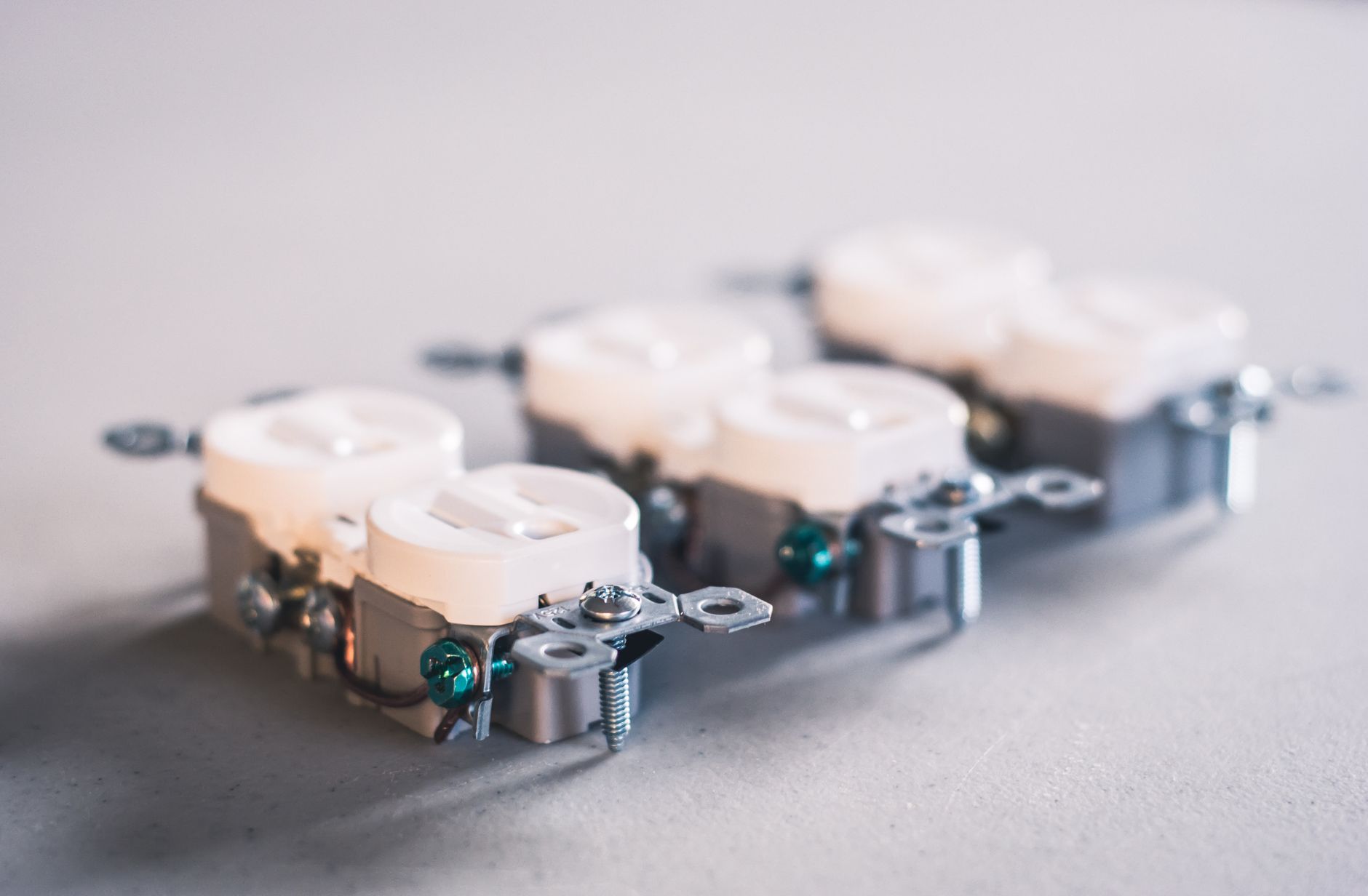

Types of Electrical Outlets: A Quick Comparison
Choosing the right type of outlet is crucial, especially if you're replacing one in a kitchen or bathroom where conditions can be more challenging. Let's compare three common types:
Standard outlets are the most common and cheapest, costing around $3. They work well for most dry areas of the home. GFCI outlets, necessary for wet areas like bathrooms and kitchens, cost about $15 but offer more safety features by cutting off power if a ground fault is detected. USB outlets, which run around $20, are great for reducing clutter by eliminating the need for charging adapters, offering a modern touch to any room.
Here's a quick comparison:
| Outlet Type | Cost | Best For |
|---|---|---|
| Standard | $3 | General use |
| GFCI | $15 | Bathrooms/Kitchens |
| USB | $20 | Charging devices |
Step-by-Step Guide to Outlet Replacement
Follow these steps to replace an electrical outlet safely:
- Turn off the power at the breaker box. Double-check with a voltage tester to ensure the outlet is not live.
- Remove the outlet cover plate using a screwdriver. Keep the screws in a safe place; you'll need them later.
- Unscrew and gently pull out the old outlet. Make sure to handle it carefully to avoid damaging the wires.
- Label the wires if they aren't color-coded. This will save you time and confusion when connecting them to the new outlet.
- Disconnect the wires from the old outlet. If they are hard to remove, use needle-nose pliers to help.
- Strip the insulation from the wire ends if necessary, using wire strippers. This ensures a clean connection.
- Connect the wires to the new outlet, ensuring all screws are tight. Typically, black or red wires connect to brass screws, white to silver, and green or bare copper to the ground screw.
- Carefully push the outlet back into the wall and secure it with screws. You might need to adjust the wires to fit everything neatly.
- Replace the cover plate and turn the power back on to test your work. Plug something in to confirm the outlet is working properly.
FAQ: Common Questions About Outlet Replacement
Q: Is it safe for a DIYer to replace an outlet?
Yes, as long as you turn off the power at the breaker and use a voltage tester to confirm it's off.
Q: What if my new outlet isn't working?
Double-check your wire connections. Ensure all screws are tight and wires are connected to the correct terminals. If it still doesn't work, check the breaker box.
Q: How often should outlets be replaced?
Generally, outlets should be replaced when damaged, if they feel warm to the touch, or if they no longer meet your needs, such as switching to a USB outlet.
Q: Can I replace a two-prong outlet with a three-prong outlet?
Yes, but it often requires additional grounding. Consult an electrician if you're unsure about the wiring.
EditorialOur Take
Replacing an electrical outlet is a manageable task for most homeowners, as long as safety measures are followed. It's satisfying to complete, and understanding the basics can save you money and give you confidence in handling other minor electrical repairs. This is perfect for anyone comfortable using basic tools and willing to spend a bit of time learning the process. However, if you're faced with outdated wiring or an unusual setup, consulting a professional might be your best option. For me, the peace of mind knowing that my outlets are safe and functional is worth the effort and the time spent.
